2007 and Up 1500/2500/3500

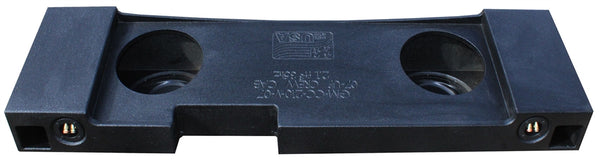

GM 2-10" VENTED CREW CAB SUB BOX
GM-CC-210-V-07
2019+ TRUCKS WILL REQUIRE REMOVAL OF THE UNDER SEAT STORAGE TRAY.
SUB SIZE: 10" X 2
SUB HOLE SIZE: 9.2"
Subs with larger frames will require trimming by the installer.
MOUNTING DEPTH: 6.5"
MAX MAGNET DIAMETER: 7"
BAFFLE TO FLOOR CLEARANCE: 1.75"
INTERNAL AIR VOLUME: 2.1 FT3
TUNE FREQ: 35 HZ
WE ALSO OFFER MOUNTING BRACKETS FOR THIS ITEM:
https://www.foxacoustics.com/products/2007-2024-gm-crew-cab-mounting-brackets
THIS BOX WILL NOT FIT THE EXTENDED / DOUBLE CAB TRUCKS
IF YOU HAVE A LARGE HUMP IN THE FLOOR, YOU HAVE A EXTENDED / DOUBLE CAB TRUCK.
CREW CABS HAVE A FLAT FLOOR UNDER THE REAR SEAT.
THIS IS THE ULTIMATE SETUP WHEN YOU WANT HIGH SPL AND DEEP LOW BASS FOR YOUR TRUCK.
THIS ENCLOSURE HAS 1.75" OF FLOOR CLEARANCE SO YOUR SUBS WON'T BE PRESSED AGAINST THE FLOOR MUFFLING THE BASS.
IT IS PORTED/ VENTED WITH REAR FIRING VENTS THAT REFLECT THE BASS OFF THE REAR WALL EXTENDING THE WAVE LENGTH RESULTING IN A DEEPER BASS RESPONSE AND MORE SPL.
THIS ENCLOSURE IS SPRAY COATED WITH BLACK LINE-X TRUCK BED LINER FOR A HIGH QUALITY, DURABLE, AND EASY TO CLEAN FINISH.

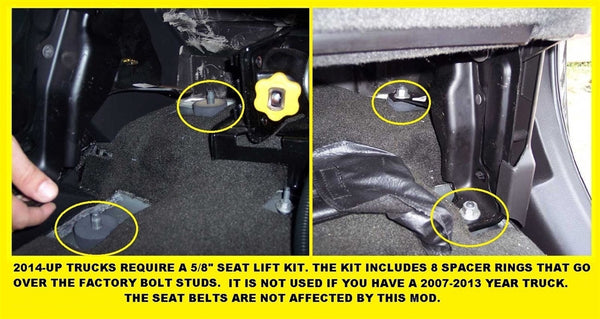

THE 2014-18 TRUCKS REQUIRE A 5/8" SEAT SPACER KIT TO LIFT THE REAR SEAT 5/8". THE KIT INCLUDES 8 SPACERS THAT ARE PLACED ON THE BOLT STUDS THAT SECURE THE REAR SEAT. THIS KIT IS INCLUDED WITH THE SUB BOX.
BASS PACKAGES
Save 10% off the sub box when you buy a bass package.
Package #1 "good"
2- Sundown Audio LCS 10" subs
1-Sundown Audio SIA-1250d amp
1- Full Tilt 4ga OFC amp wire kit
1- GM-CC-210-V-07 sub box
Package #2 "better"
2- Trinity Audio E-10" subs
1- Trinity Audio 2000.1 amp
1- Skyhigh Audio 0ga OFC amp wire kit
1- GM-CC-210-V-07 sub box
Package #3 "best"
2- Sundown Audio SA Classic 10" subs
1- Sundown Audio SIA-2500d smart amp
1- Sundown Audio premium 0g OFC amp wire kit
1- GM-CC-210-V-07 sub box
