RAM QUAD AND CREW CAB
ELITE version
DQC-212-V-E
Fits
* 3rd & 4th gen "2002-2018" 1500, 2500 & 3500
* 5th gen "2019-up" 2500 & 3500 Does NOT fit 1500s
* 2019-UP "CLASSIC" 1500, 2500 & 3500

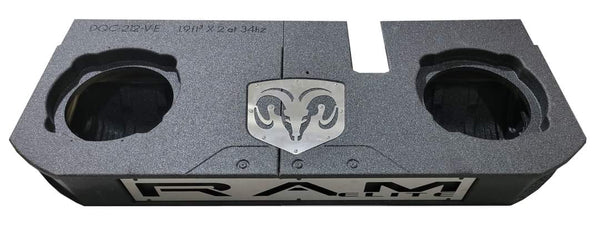

2-12" VENTED SUB BOX
includes
*2.5" tall steel seat lift kit

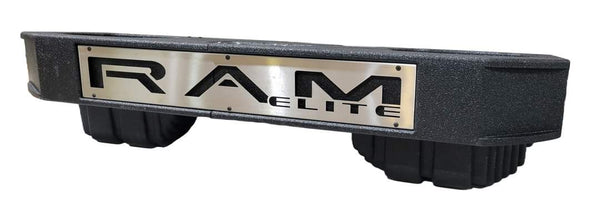

*Laser cut stainless RAM badging
*Cup holder kit
*High excursion steel bar grill kit
SUB SIZE: 12"
SUB HOLE SIZE: 11.15"
MOUNTING DEPTH: 7.75"
MAX MAGNET DIAMETER: 7.5"
INTERNAL AIR VOLUME: 1.9 FT3 PER SUB
TUNE FREQ: 34hz
2.5" seat lift kit is included and is required for proper fit.
12" to 10" adapter ring available if you want to use 10" subs.
Subs with large diameter frames will require trimming of the opening by the installer.
DO NOT RUN YOUR POWER WIRE UNDER THE SUB BOX!
FITMENT IS VERY CLOSE AND LARGE POWER WIRE UNDER THE SUB BOX WILL CAUSE IT TO SIT TOO HIGH AND HIT THE SEAT.
SUB AND AMP COMBINATIONS SOLD BY FOX ACOUSTICS
THAT WORK WELL WITH THIS SUB BOX.
2 SUNDOWN SA V2 12s powered by SIA 2500d
2 SUNDOWN SA Classic 12s powered by a SAE-2000.1
2 SUNDOWN Ev4 12s powered by a SIA 1250d
Other commonly used subs:
JL Audio 12w3 and 12w6
Punch P3 and T1 12s
Kicker Q, VX, R, & VR 12s
CLICK ON ELECTRONICS, ON THE MAIN MENU FOR SUBS, AMPS AND WIRE KITS.
