FORD F250/F350 SUPERDUTY 3-10" VENTED SUB BOX 1999-2007

FOX BOX

Regular price $699.00

FSD-310-V-99

FORD F250/F350
CREW CAB
TRIPLE 10 VENTED SUB BOX!

VEHICLE YEARS
1999-2007 ONLY!!

NOT COMPATIBLE WITH REAR POWER WINDOW.
If you wish to use this sub box the window motor must be relocated or removed.

AIR VOLUME
3.5 CUBIC FEET
DIVIDED
NO
TUNE FREQUENCY
35hz
MOUNTING HOLE SIZE
9.125"
Subs with larger frames will require trimming by the installer.
MAX OUTER FRAME DIAMETER
11"
MOUNTING DEPTH
7" deep WITH A 6.5" DIAMETER MAGNET

STEEL SEAT LIFT KIT IS INCLUDED AND IS REQUIRED

SEAT WILL BE LIFTED 2" up and 2" forward

BOX FINISH AND COLOR:

SPRAY BED LINER COATING / BLACK

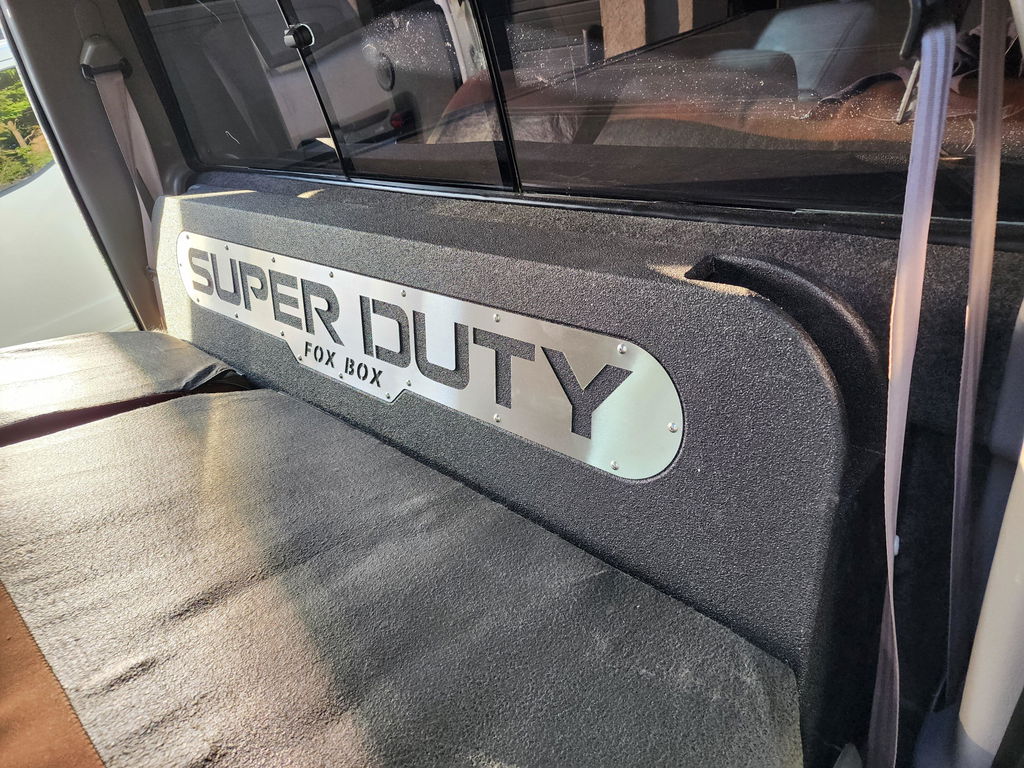

SUPER DUTY NAME PLATE / STAINLESS STEEL

3 SQUARE PLATES ON THE FRONT OF THE SUB BOX ARE NOW POWDER COATED BLACK.

DOES NOT FIT 2008 AND NEWER TRUCKS.

DOES NOT FIT SUPER DUTY SINGLE OR EXTENDED CAB TRUCKS.

Trucks with power rear window will require relocating or removal of the motor.

Recommended sub and amp package
3- SUNDOWN EV4 10" SUBS ON A SIA-1750D AMP
OR
3-SUNDOWN SA CLASSIC 10" SUBS ON A SIA-2500D AMP

SA CLASSICS WILL REQUIRE TRIMMING OF OPENING



INSTALLATION TIP!

INSTALL THE SUB BOX IN THE TRUCK WITH THE SEATS OUT.

THIS ENCLOSURE IS HUGE AND IS DIFFICULT TO GET IN WITH THE SEATS IN THE TRUCK.

SEE PICTURES FOR SEAT LIFT KIT PART LOCATIONS.

DUE TO THE SEATS AND SIZE OF SUB BOX WE RECOMMEND HAVING 2 PEOPLE.

THIS ITEM IN NOT A 5 MINUTE DROP IN SUB BOX! IT REQUIRES INSTALLATION TOOLS AND THE ABILITY TO READ AND UNDERSTAND INSTRUCTION FOR BRACKET INSTALLATION. DIY IS NOT FOR EVERYONE, SO YOU MAY WANT TO SEEK PROFESIONAL INSTALLATION.

Customer Reviews

Based on 3 reviews
33%
(1)
0%
(0)
67%
(2)
0%
(0)
0%
(0)
W
William Easley
Fox Box 3 10 sub enclosure

The box is nice . It had to be modified to use the speakers that fox acoustic recommended for the box and instructions are very poor . Expected plug and play with video instructions for that amount of money. Also connection point for wires needs to be upgraded.

Sorry that you had a difficult time doing your install. DIY is not for everyone. The instructions are straight forward and they are on the listing along with other pictures. Trimming the hole for a sub with a cast frame is typical installation practice. There are 3 terminal cups that can handle 2000w each so they are more than adequate.

M
Mark
Was expecting better

The box fit great but its only 1/2" mdf and it does flex when turned up. Right now I have three sundown 10's on a jp23. When I upgrade the amp I will have to remove the box to add more bracing and change out the cheap terminals. On another note I was missing two bolts for the seat lift and it didn't come with any directions. For $700 i was expecting alot more

D
Dustin Tarvin
Amazing box

Always amazing, anything coming from fox acoustic is going to be solid. Clear sound, no rattle (surprising out of an 2006 super duty) and everything fit as it should. I had a little hang up on the seat lift brackets but one phone call and they walked me through. Customer service top notch, materials top notch, sound top notch.
