2022+ NON HYBRID Toyota Tundra Crew Max 4-10" vented sub box

FOX BOX

Regular price $599.00


TCM-410-V-22
2022-UP TUNDRA CREW MAX
DOES NOT FIT HYBRID MODEL
4-10" VENTED OR SEALED SUB BOX
AIR VOLUME:
2.4 CUBIC FEET NET
DIVIDED:
NO
PORT/VENT TUNE FREQUENCY:
SEALED OR 36hz
MOUNTING HOLE SIZE:
9.15"
MOUNTING DEPTH:
4"
BAR GRILLS: OPTIONAL
BOX FINISH AND COLOR: SPRAY BED LINER COATING, BLACK

Removal of under seat and behind the seat storage compartments, rubber mat, and jute padding are required for proper fit.

This enclosure is a two piece sub box that bolts together in the truck. Foam weather stripping is provided.

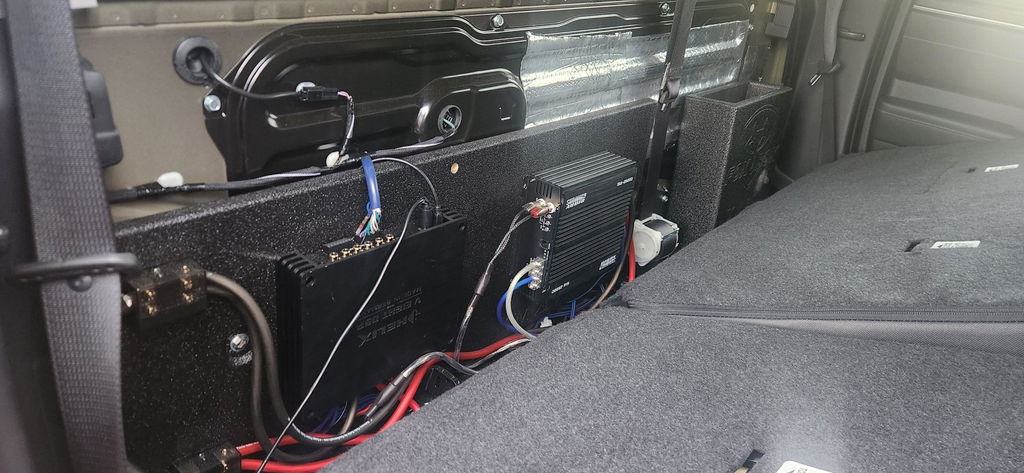

Optional amp rack is 13" x 32" and bolts to the rear wall on the passenger side.
Optional bar grills only fit ROUND subs up to 11.25" outside diameter
Front edge of seat sits 3/4" higher and sits on top of front rim of sub box.

Recommended sub woofers
JL AUDIO TW310, run vented or sealed
"requires trimming of cutout to 9.7"
---------------------------------------------------
SUNDOWN SML-10, run vented or sealed
---------------------------------------------------
ALPINE TYPE-R SHALLOW, run sealed
---------------------------------------------------
KICKER L710T, run sealed
"requires cutting opening to square"
--------------------------------------------------

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Joey I.
Innovative Box

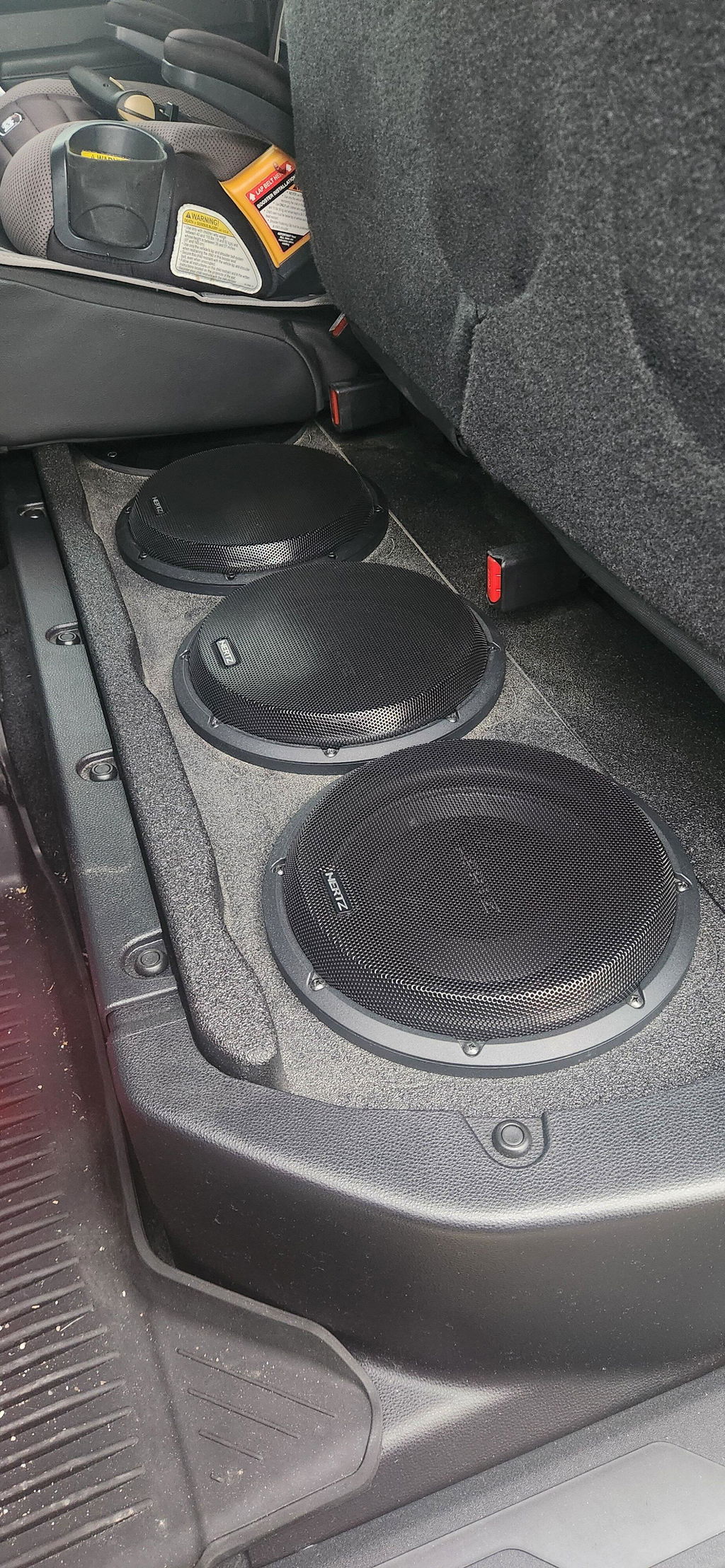

The box turned out great. Build quality exceeded my expectations. Lots of internal bracing and the coating was applied well. I have 3 Hertz MPS250 shallow 10s in there and it slams. Took one star because I had to go grab some longer bolts to get the amp rack mounted to the back wall. Additionally, by the specs, my subs should have fit perfectly but the cutouts were coated with the bed liner and I had to remove that. I also added more weatherstripping between the two halves of the box. I cnc'd a block off plate for the 4th hole and sealed it off. I would recommend this box for a 3rd gen Tundra if you want max airspace.

A
Ajay
Port hz

What is the tuning hz of the port ?

R
RB
2022+ Tundra sub box

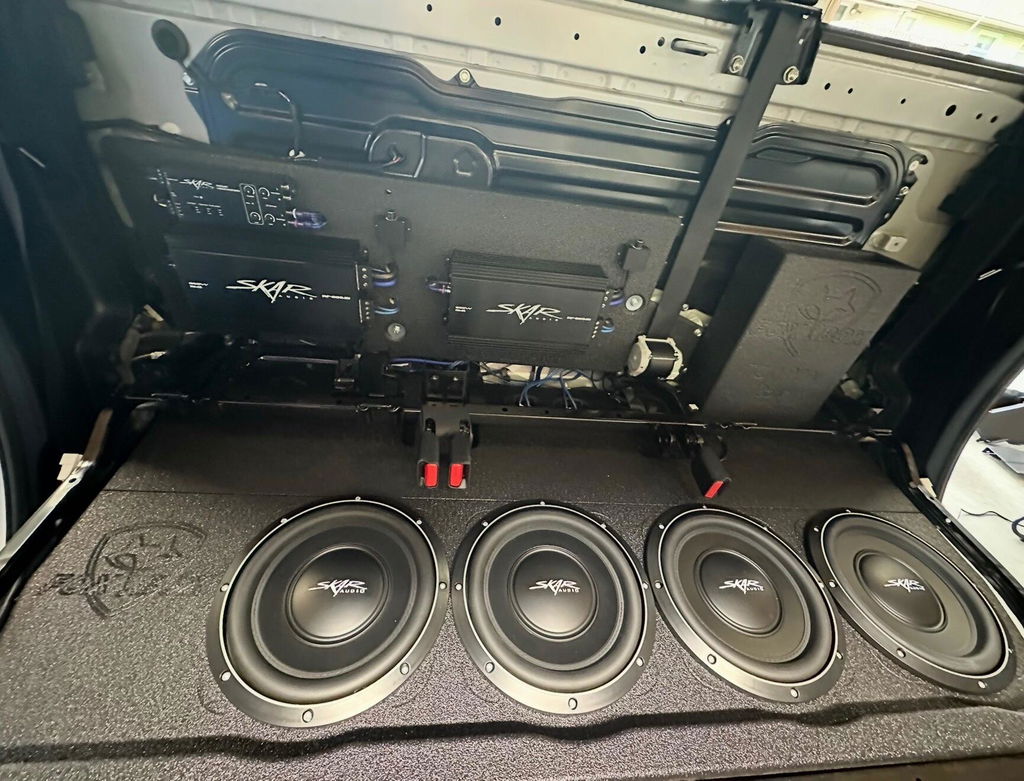

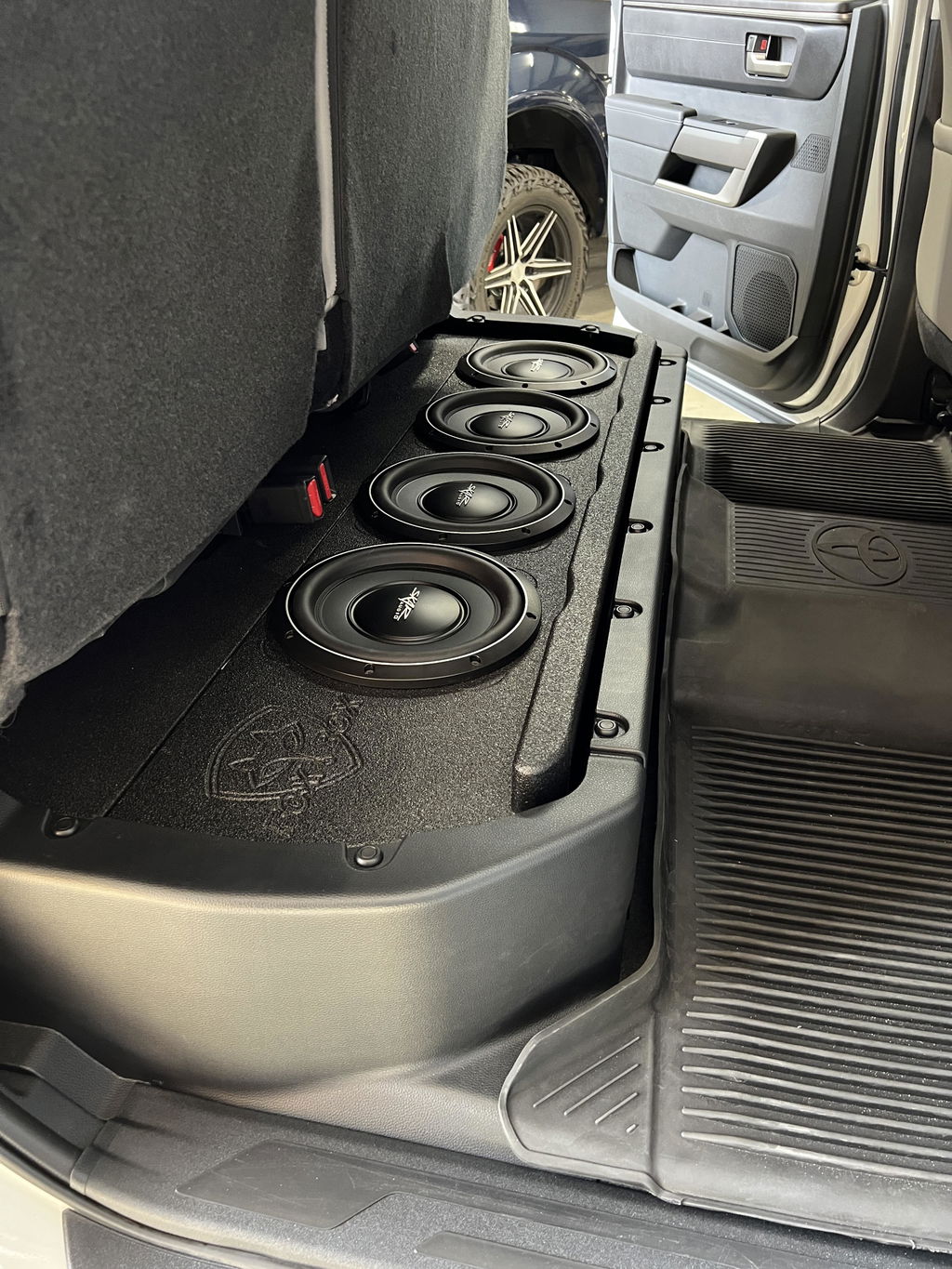

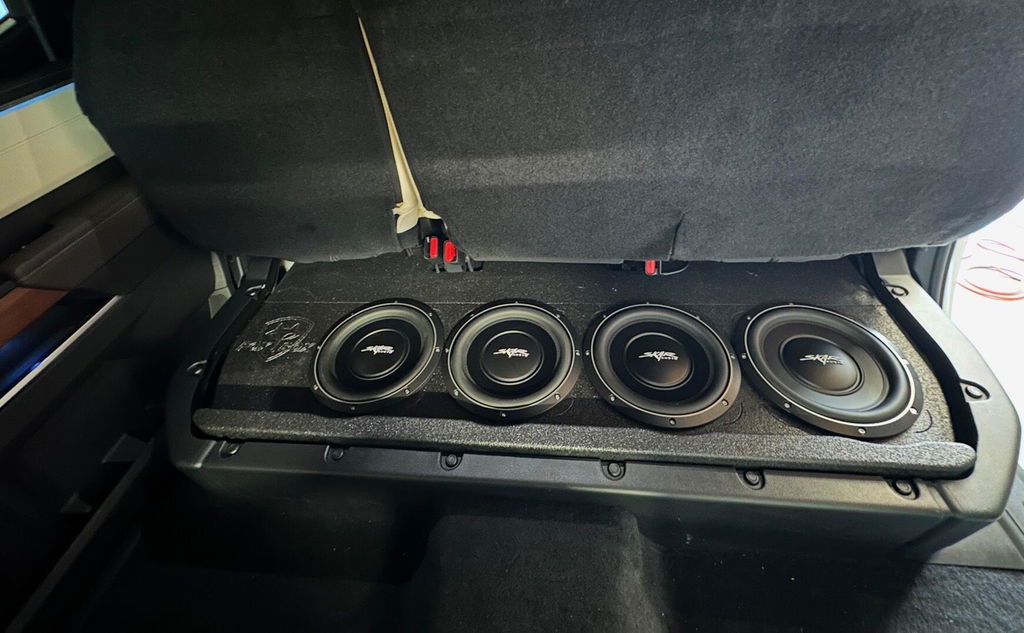

Amazing quality, couldn’t be happier with my purchase. Very hefty box, doesn’t feel or look cheap. Even the audio shop that performed the installation was impressed with the box and that says a lot. Currently running it sealed with some Skar Audio Shallow subs, and it sounds amazing.

Thank you and enjoy!

J
Jason Z.
manger

sounds good but grill don't fit
